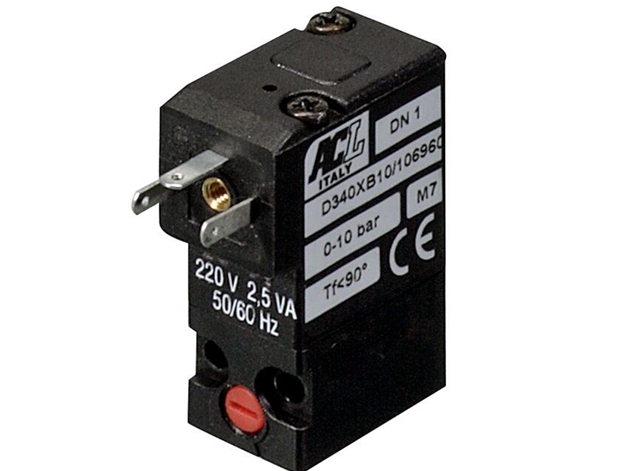

ACL 2位3通微型閥常閉341-343

ACL 2位3通微型閥常閉341-343

說明

電磁閥3路

直接作用提升閥型

構造

本體縮醛共聚物

內部零件縮醛共聚物-不銹鋼

密封材料NBR

功能

固定方式: M3螺釘

最大扭矩0.5牛米

通用安裝位置

流體溫度:最高+50°C

環境溫度:-15°C+50°C

流體:空氣、中性氣體

響應時間: 10-15ms

手動超控:封閉雙穩態功能

電氣操作特性

占空比: ED100%

絕緣等級:F(+155*C)

電壓公差: +10%

防護等級:電纜IP65

快接IP0O ,帶連接器

安裝IP65

電氣連接:電纜( L=300mm )

AMP 2.8x0.5

DIN 43650C

DESCRIPTION

Solenoid valve 3 way

direct acting poppet type

CONSTRUCTION

Body Acetal copolymer

Internal parts Acetal copolymer - Stainless steel

Seal material NBR

FEATURES

Fixing method: M3 screws

max torque 0,5Nm

Universal mounting position

Fluid temperature: +50°C max

Ambient temperature: -15°C +50°C

Fluid: Air, neutral gases

Response time: 10- 15ms

Manual override: Enclosed bi-stable function

EL ECTRICAL OPERATING FEATURES

Duty cycle: ED100%

Insulation class: F (+155°C)

Voltage tolerance: +10%

Protection class: Cables IP65

Fast-on IP0O, with connector

fited IP65

Electrical connection: Cables (L =300mm)

AMP 2.8x0.5

DIN 43650C

3/2 Micro NO

TYPE

PORT SIZE

ORIFICE

NOMINAL RATE

DIFFERENTIAL PRESSURE

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

NI/1 Pa 6bar ΔP=1bar

MIN

MAX

AC-VA

DC

AC 24V

AC 110V

AC 220V

DC 12V

DC 24V

1-2

2-3

INRUSH

HOLDING

W

°C

341-343 NO - 15mm Series 340

Flange

1 1

1.2 1.2

26 26

0 0

8 8

3.6 3.6

2.5 2.5

2.5 2.5

107030

107060

107050

106950

106960

NBR
