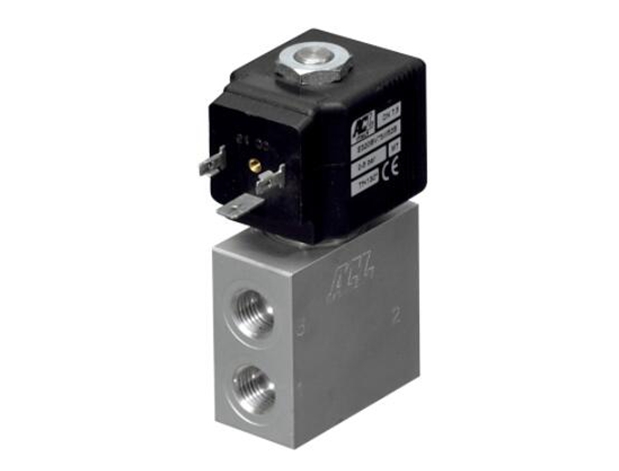

ACL 2位3通直動式通用電磁閥 322-325
詳細介紹
ACL 2位3通直動式通用電磁閥 322-325
電磁閥3通直接作用提升閥類型。
平衡密封和特殊結構允許大流量。
電磁閥可以用作常閉式，
常開、混合或轉向。
應要求配備位置檢測器(帶led )。
構造
車身陽極氧化鋁( 320321322系列)
AISI 303 ( 323324325系列)
電樞管AISI 303
柱塞和芯AISI 430FR
彈簧AISI 302
密封材料FPM
功能
最大允許壓力PS 50bar
最大流體粘度25cSt ( mm2/s )
環境溫度:根據線圈,從-10°C到+80°C
通用安裝位置
選項
帶2 mt預接線連接電纜的位置檢測器2線(選項/P2 )
帶2 mt預接線連接電纜的位置檢測器3線(選項/P3 )
帶3針M8接頭的位置檢測器(選件/PC )
DESCRIPTION
X
Solenoid valve 3 way direct acting poppet type.
The balanced seal and the special construction allows a big flow.
The solenoid valve can be used as normally closed,
normally open, mixing or diverting.
On request with position detector (with led).
CONSTRUCTION
Body Anodized aluminium (series 320,321,322)
AISI 303 (series 323,324,325)
Armature tube AISI 303
Plunger and core AISI 430FR
Springs AISI 302
Seal material FPM
FEATURES
Maximum allowable pressure PS 50bar
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS
Position detector with 2 mt prewired connection cable 2-wires (option
/P2)
Position detector with 2 mt prewired connection cable 3-wires (option
/P3)
Position detector with 3-pin M8 connector to be wired (option /PC)
| 3/2 Direct Acting NO | ||||||||||||||
| TYPE | PORT SIZE | ORIFICE | Kv | DIFFERENTIAL PRESSURE ΔP bar | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | ||||||
| mm | m3/h | MIN | MAX | AC-VA | DC | width | TYPE | |||||||
| 1-2 | 2-3 | AC | DC | INRUSH | HOLDING | W | °C | |||||||
 322-325 NO - Series 320 | G 1/4 | 7.5 | 7.5 | 0.64 | 0 | 9 | 9 | 40 | 30 | 27 | 36 | 5 | FPM | -10 +140 |
