ACL COILS線圜 Series 2

說明

包含磁路的封裝線圈。

通過中心螺母固定。

電氣連接符合DIN 43650 A

( A EN 175301-803 ISO 4400 )

構造

封裝:

F級玻璃纖維尼龍

H類玻璃纖維聚芳酰胺

磁路鍍鋅鋼

繞組銅覆蓋

H級絕緣

環境溫度: F級+14°F+131°F

H級+ 14*F+176°F

UL線圈+14°F+140°F

DESCRIPTION

Encapsulated coil incorporating the magnetic circuit.

Fixing by means of a central nut.

Electrical connection according to DIN 43650 A

(A EN 175301-803 ISO 4400)

CONSTRUCTION

Encapsulation:

Class F Fibre-glass Nylon

Class H Fibre-glass Polyarylamide

Magnetic circuit Zinc-plated steel

Windings Copper covered with

class H insulation

Ambient temperature: class F +14°F +131°F

class H +14°F +176°F

UL coils +14°F +140°F

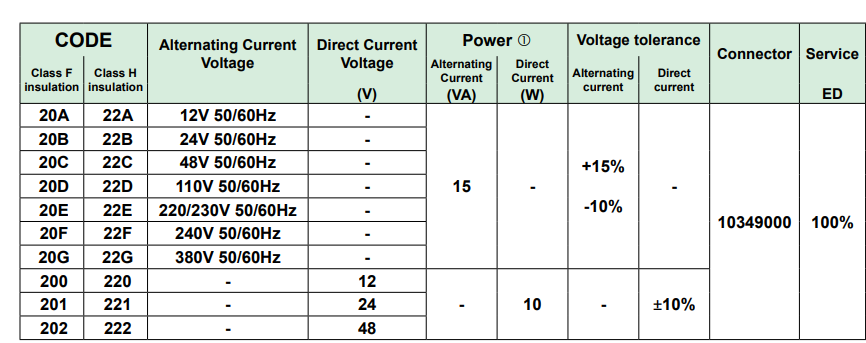

Coils
TYPE	CODE		ALTERNATE CURRENT FREQUENCY 50/60Hz VOLTAGE VOLT	DIRECT CURRENT VOLTAGE VOLT	POWER		VOLTAGE TOLLERANCE		CONNECTOR	ED SERVICE
	F Insulation Class	H Insulation Class			AC VA	DC Watt	AC	DC
Series 2	20A 20B 20C 20D 20E 20F 20G 200 201 202 ----- - - - - - -	22A 22B 22C 22D 22E 22F 22G 220 221 222 ------ U25B (UL) U25D (UL) U25E (UL) U25F (UL) U250 (UL) U251 (UL)	12 24 48 110 220/230 240 380 - - - ------ 24V/60Hz 120/60Hz 230/60Hz 240V/60Hz - -	- - - - - - - 12 24 48 ----- - - - - 12 24	15 15 15 15 15 15 15 - - - ----- 15 15 15 15 - -	- - - - - - - 10 10 10 ----- - - - - 10 10	+15% -10%	±10%	10349000 10349060 10349001	100%
