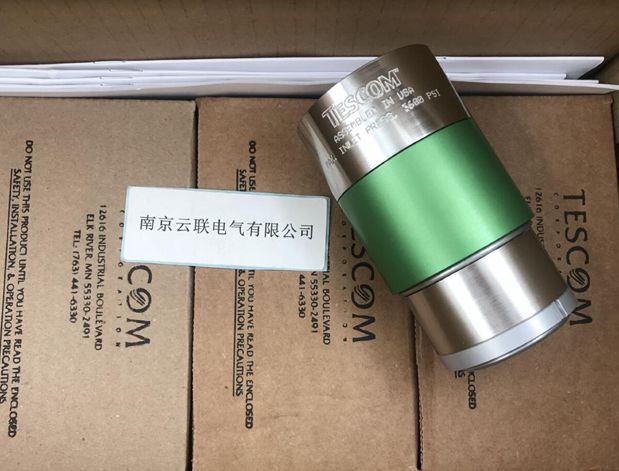

TESCOM 調節閥44-1500系列 帶隔膜
TESCOM 調節閥44-1500系列 帶隔膜
詳細介紹
TESCOM 調節閥44-1500系列 帶隔膜
高精度 低壓 南京云聯電氣有限公司 原裝正品 優勢供應
產品特點
高精度 低壓調節閥44-1500系列 帶隔膜 600 psig / 41 bar
TESCOM? 44-1500 Series high flow/low pressure regulator controls outlet pressures up to 600 psig / 41 bar. Large area piston provides accurate pressure control ａnd cycle life superior to diaphragm sensed regulators when applied to heavy duty cycling. Features a segregated / captured vent for hydraulic or pneumatic media ａnd is available in two outlet spring ranges. Optional dome or air loaded versions for remote operation or for use with the TESCOM ER3000 Electropneumatic Controller for automation. Ideal for use in hydraulic testing ａnd pneumatic testing.
壓力范圍
最大進氣壓力
6000 psig / 414 bar
出口壓力
Spring Load:0-200, 0-400 psig / 0-14, 0-28 bar
Air/Dome Load:0-600 psig / 0-41 bar
材質
Body: 316 Stainless Steel or Brass
40 Micron Filter:Bronze
Main Valve Seat:Vespel?SP21
Vent Valve Seat:Vespel?SP21
O-Ring: Buna-N, Viton?, Kalrez?, Ethylene Propylene
Back-up Rings:Teflon?
Remaining Parts:300 Series Stainless Steel, Brass, Monel
